ADA-950225 Manual, Command Description
The ADA dedicated commands to control the ADA-950225 are described below. They are an integral part of the UZE BIOS Version 2.1a. Version 2.1a is a super-set of UZE V.2.01. UZE V.2.01 commands are described in detail in the UZE User's Guide (UZE > Manual).
After startup of ADA-950225, the HPMAN label is copied into ILoopV. Execution starts with Dumy-Ap, which looks in ILoopV for the application to run.
Connect the "X-AXIS" output of HP3581C to "IN-X" and "Y-AXIS" to "IN-Y" of ADA-950225. The "OUT-X" must be connected to the X-channel input of an oscilloscope and "OUT-Y" to the Y-channel.
Connect a spectrum rich function signal to the input of the Selective Voltmeter / Wave Analyzer HP3581C "INPUT" terminal, select "SWEEP MODE" "MAN" and turn slowly "MANUAL VERNIER" knop clockwise. The time base of the oscilloscope should be set to X/Y-Mode. Adjust X and Y channel input attenuators and center the image until a satisfactory spectrum can be seen.
The HPMAN-loop can be terminated by HPStop (see below) and then activating the NMI (right switch on ADA-950225). The loop can be re-entered with the ADARun extended command (see below).
HP3581C Control Commands
Rev(ision — Syntax: aRev.
Returns the revision number of the dedicated ADA routines. It uses the extended
A-command Ver(sion at its entry label Versi0.
HPStop — Syntax: aHPStop. (do not forget to toggle
NMI).
In the ADA-system, DumyAp is HPMan. HPMan constantly writes the analog input
of the Y-input into memory location 32,768 for 256 bytes and overwritting the
old contents by the new measured values. With HPMan running, it would not be
possible to use the same memory for the other ADA dedicated procedures.
HPStop resets the IQRS (instruction queue return stack) and initialises it with the UZE DumyAp address. After HPStop is called, a NMI (non maskable interrupt) will start DumyAp.
Use HPStop and toggle NMI switch (right) before using any other ADA dedicated program. HPMan can be restarted with the ADARun command (see below).

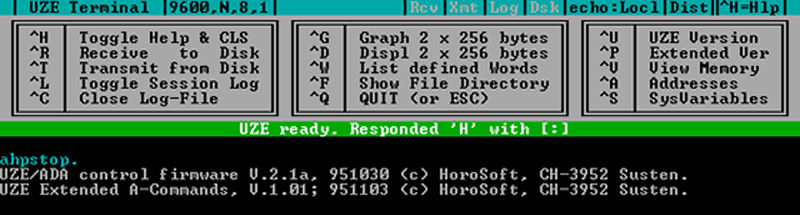

Terminal screen (see UZE Terminal) after aHPStop executed and NMI was toggled. The UZE can be fully used.
HPRep — Syntax: aHPRep{,n}.
This command controls the Selective Voltmeter / Wave Analyzer HP3581C. The
Analyzer must be set so Sweep-Mode REP(etitive, PEN and TRG of ADA-950225 must
be connected to "PEN LIFT" and "EXT. TRIG" respectively. The recorder X- and
Y-axis outputs must be connected to In-X and In-Y respectively. The X- and Y-Out
terminals should be connected to the appropriate inputs of an oscilloscope. The
oscilloscope's timebase must be set to X/Y-mode.
As soon as the HP3581C lifts the pen, ADA-950225 triggers the sweep. The number of sweeps specified ({n}: n=[1;127], default is 1) will be taken. The X-input reads the ramp voltage that sweeps the analyzer and uses the digitized voltage to point to a memory location. The Y-input reads the meter and stores the digitized voltage at the memory location specified by the ramp voltage on the X-input.
After the specified number of sweeps have been taken, the X-output recreates the sweep ramp voltage, points to the memory location and outputs that value on the Y-channel. Thus, frequency and voltage are synchronised. The memory readout is performed by the HPShow procedure (see below). It can be stopped by either toggeling the PEN-switch to override (down position) or by removing the PEN input. The Analyzer Sweep-Mode should be changed to "OFF".
HPShow — Syntax: aHPShow.
Outputs ramp voltage on Out-X. This ramp is used to point to the Y-channel memory.
The value at that memory location is output on Out-Y. The loop can be stopped by
toggeling PEN to override (down) position.
Sampling Commands
SampleChop — Syntax: aSampleChop.
Samples voltage at Y-In and X-In in about 100 ms and stores Y values in memory from
32,768 to 33,023, the X values from 33,024 to 33,279 in chop-mode, then stops.
Chop-mode means that both channels are sampled simultanously; well, not actually
simultanously but alternately: Y-value, X-value, Y-value, X-value …
SampleAlt — Syntax: aSampleAlt.
As SampleChop, but first takes 256 samples from Y-In, then from X-In. This is the
alternate mode.
SampleY — Syntax: aSampleY.
Takes 256 samples from Y-In and stores values from memory location 32,768 hence.
SampleX — Syntax: aSampleX.
Takes 256 samples from X-In and stores values from memory location 33,024 hence.
Sweep Commands
SweepChop — Syntax: aSweepChop.
Outputs memory content at 32,768 to Out-Y and 33,024 to Out-X in chop mode. First,
byte-0 for channel-Y, then byte-0 for channel-X is output. Then, byte 1 from
channel-Y, and so on. Sweeping can be terminated by toggeling PEN to override (down)
position.
SweepAlt and SweepBurst — Syntax: aSweepAlt.
and aSweepBurst
Outputs memory content at 32,768 to Out-Y and 33,024 to Out-X in alternate or burst
mode. First, 256 bytes of Y-memory are output on Y-Out, then all 256 bytes from
the X-memory on X-Out. Then is the Ys turn again. This gives a burst-like appearance
on the oscilloscope, hence the alternate name Sweep-Burst. Sweeping can be terminated
by toggeling PEN to override (down) position.
SweepY — Syntax: aSweepY.
Outputs memory content from 32,768 to 33,023 on Y-Out. Sweeping can be terminated by
toggeling PEN to override (down) position.
SweepX — Syntax: aSweepX.
Outputs memory content from 33,024to 33,279 on X-Out. Sweeping can be terminated by
toggeling PEN to override (down) position.
Sample and Hold Commands
SaHChop — Syntax: aSaHChop.
Sample and Hold in Chop-Mode. Samples Y-In and X-In in chop-mode exactly as SampleChop
(which routine it uses). After the scan, both channels are output in chop-mode, exactly
as SweepChop (which routines it uses) does. Sweeping can be terminated by toggeling PEN
to override (down) position.
SaHAlt — Syntax: aSaHAlt.
Sample and Hold in Alternate-Mode. Takes 256 samples on Y-In, then on X-In exactly as
SampleAlt (which routines it uses) does. After the scan, both channels are output in
chop-mode, exactly as Sweep-Chop (which routines it uses) does. Sweeping can be
terminated by toggeling PEN to override (down) position. While Y is sampled, LED is
lit bright, while X-channel is being samled, LED is lit half bright.
SaHY — Syntax: aSaHY.
Sample and Hold Y-channel. Samples Y-Input for 256 values and stores it in memory from
32,768 hence (see SampleY). During the sample, the LED lights. After data aquisition,
the memory content is output on Y-channel (see SweepY). Sweeping can be terminated by
toggeling PEN to override (down) position.
SaHX — Syntax: aSaHX.
Sample and Hold X-channel. Samples X-Input for 256 values and stores it in memory from
33,024 hence (see SampleX). During the sample, the LED lights. After data aquisition,
the memory content is out-put on X-channel (see SweepX). Sweeping can be terminated by
toggeling PEN to override (down) position.
Scanning Commands
ScanChop — Syntax: aScanChop.
Samples Y- and X-inputs and stores the measured value in the respective memory location.
During the time the ADC is busy converting, the Y- and X-memory contents are output on
Y-out and X-out in chop mode. (ADC worst case conversion time is 260 µs). ScanChop
can be terminated by toggeling PEN to override (down) position.
ScanY — Syntax: aScanY.
Outputs memory from 32,768 to 33,023 on Y-Out while ADC is busy converting Y-In and
storing it at 32,768 hence. ScanY can be terminated by toggeling PEN to override (down)
position.
ScanX — Syntax: aScanX.
Outputs memory from 33,024 to 33,279 on X-Out while ADC is busy converting X-In and
storing it at 33,024 hence. ScanX can be terminated by toggeling PEN to override
(down) position.
Recording and Play Commands
Record and RecordMono — Syntax: aRecord. and
aRecordMono.
Reads Y-In and converts it for 31,680 bytes to 32,768. This gives approximately 8
seconds worth of data. During reecording, LED is on.
RecordStereo — Syntax: aRecordStereo.
Records Y-In and X-In in chop mode for 15,840 bytes each and stores the Y-values from
32,768 to 48,607 in memory and X-values from 48,608 to 64,447. The LED is lit while
recording.
PlayMono and PlayBack — Syntax: aPlayMono. and
aPlayBack.
Outputs values from memory 32,768 to 64,774 on Y- and X-channel in parallel. After
31,680 bytes are output, restarts playing back at 32,768. Play can be stopped by
toggeling PEN to override (down) position.
PlayStereo — Syntax: aPlayStereo.
Outputs memory values from 32,768 to 48,607 on Y-Out and from 48,608 to 64,447 on
X-Out in chop mode. After memory is dumped, restarts at 32,768 and 48,608, respectively.
Play can be stopped by toggeling PEN to override (down) position.
Data Logging Commands
LogSingle — Syntax: aLogSingle,m,t.
Logs input of channel-Y for 31,680 bytes from 32,768 to 64,447. The delay between 2
samples can be set with either 6.5 µs or 425.9 ms resolution. Log time can be
thus selected from 260 ms to over 10 days. Use as 1 channel data logger. LogSingle
can be prematurely aborted by toggeling PEN to override (down) position. The system
variable CAcntr = AUXY,3 holds the number of remaining loops.
-
m = "S" or "L"
t = delay multiplier [1;65,535] (0=65,536) -
Calculation of delay:
Case m = S (short): t x 6.5 µs x 31,680
Case m = L (long): t x 425.9 ms x 31,680
LogDouble — Syntax: aLogDouble,m,t.
Logs inputs of Y- and X-channels in chop mode for 15,840 bytes each. Y-channel values
are stored from 32,768 to 48,607 and X-channel data from 48,608 to 64,447. The delay
between 2 samples can be set with either 6.5 µs or 425.9 ms resolution. Log time can
be between 200 ms and over 5 days. Use as a 2 channel data logger. LogDouble can be
prematurely aborted by toggeling PEN to override (down) position. The system variable
CAcntr = AUXY,3 holds the number of remaining loops.
-
m = "S" or "L"
t = delay multiplier [1;65,535] (0=65,536) -
Calculation of delay:
Case m = S (short): t x 6.5 µs x 15,840
Case m = L (long): t x 425.9 ms x 15,840
PenBit — Syntax: aPenBit.
PenBit is a 1 bit recorder. The PEN input is read for 4096 bits. Each 8 bits are
stored as bytes from 33,280 to 33,791 for 512 bytes. After all 4096 bits are read,
PenBit terminates. Read is quite fast and no premature abort facility is implemented.
47 ms are needed to get the 4096 bits.
TrgBit — Syntax: aTrgBit.
512 bytes from 33,280 to 33,791 are sent as 4096 bits to the TRG output. After all
bits are output, restarts at 33,280. This loop can be interrupted by toggeling PEN
to override (down position).
Memory Management Commands
XopyXY — Syntax: aCopyXY.
Copies Y-buffer at 32,768 to X-buffer at 33,024 (256 bytes).
XopyYX — Syntax: aCopyYX.
Copies X-buffer at 33,024 to Y-buffer at 32,768 (256 bytes).
SwapXY — Syntax: aSwapXY.
Copies Y-buffer at 32'768 temporarily to 33'280, then copies X-buffer at 33,024 to
Y-buffer at 32,768. Finally, copies temporary Y-buffer at 33'280 to X-buffer at
33,024. This exchanges the X- and Y-buffers (256 bytes each). The first half of
the PenBit-buffer at 33,280 is overwritten by the Y-buffer data.
Sine — Syntax: aSine.
Fills Y-buffer from 32'768 to 33'023 with a 1 Hz full swing sine wave function.
Note: PowerBASIC 3.20 program FUNCTGEN is a more complete function
generator with amplitude, offset and frequency options. A data file of 256 bytes
is generated. This file can be loaded into the appropriate memory.
Ramp — Syntax: aRamp.
Fills Y-buffer from 32,768 to 33,023 with a 1 Hz full swing ramp function.
Note: PowerBASIC 3.20 program FUNCTGEN is a more complete function
generator with amplitude, offset and frequency options. A data file of 256 bytes
is generated. This file can be loaded into the appropriate memory.
Triangle — Syntax: aTriangle.
Fills Y-buffer from 32,768 to 33,023 with a 1 Hz full swing triangle function.
Note: PowerBASIC 3.20 program FUNCTGEN is a more complete function
generator with amplitude, offset and frequency options. A data file of 256 bytes
is generated. This file can be loaded into the appropriate memory.
Square — Syntax: aSquare.
Fills Y-buffer from 32,768 to 33,023 with a 1 Hz full swing square wave function.
Note: PowerBASIC 3.20 program FUNCTGEN is a more complete function
generator with amplitude, offset and frequency options. A data file of 256 bytes
is generated. This file can be loaded into the appropriate memory.
Pulse — Syntax: aPulse.
Fills Y-buffer from 32,768 to 33,023 with a 1 Hz full swing pulse function of
10% duty cycle (10% on, 90% off).
Note: PowerBASIC 3.20 program FUNCTGEN is a more complete function
generator with amplitude, offset and frequency options. A data file of 256 bytes
is generated. This file can be loaded into the appropriate memory.
InvertY — Syntax: aInvertY.
Inverts data in Y-buffer from 32,768 to 33,023.
InvertX — Syntax: aInvertX.
Inverts data in X-buffer from 33,024 to 33,279.
ADA-950225 Source Listing: Z80 Source Listing of ADA Commands
The ADA dedicated command and control software for the ADA-950225 is listed below. It is an integral part of the UZE BIOS Version 2.1a. Version 2.1a is a super-set of UZE V.2.01. UZE V.2.01 commands are described in detail in the UZE User's Guide. Only the ADA-specific routines are shown here.
;=========================================================================== ; ADA-950225 SPECIFIC ROUTINES ;=========================================================================== ; ; REVISION - Revision: returns version number of Dedicated ADA routines ; Text must end with chr$(255). Uses VER to issue string. ; Syntax: aRev. ;--------------------------------------------------------------------------- ; Revisi: dw HPSTOP ;next word db 'REv' ;REV ld hl,RevisN ;HL=text start jp Versi0 RevisN: db cr,lf db 'ADA-950225 Control Software, ' db 'Rev.1.00; 951103 (c) HoroSoft, ' db 'CH-3952 Susten.',cr,lf,255 ; ; ;=============== THIS IS THE ETERNAL LOOP ================================== ; HP3581C Sweep Mode MANual is the infinite loop ; DACs are reset thus that on both channels 0Vdc are output and LED off ; After that, the X- and Y-inputs are constantly scanned and output. ; Loops eternally. Can be stopped by writing DumyAp addr into ILoopV. ; (See HPStop and ADARun) ;--------------------------------------------------------------------------- ; HPMAN: call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer ld d,h ld e,l ;DE is set as HL ; ;---- Start ADC for both axis at the same time ; ld a,StrtXY ; 7 start both to synchronize axes out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 ; ;==== Loops here as long as PEN is normal (up-position) and (ILoopV)=HPMAN ; ;---- Get interrupts, if active, read X and Y channels, else display ; HPMAN1: in a,(piobd) ;11 get interrupts and ChkXY ; 7 channels are synchronized jr nz,HPMAN2 ;1/7 PAM3I ;54 if interrupts, set PIO-A to input ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get ramp value ld l,a ; 4 HL points to memory ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ; 7 get level value ld (hl),a ; 7 store level ld a,StrtXY ; 7 restart both ADCs out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 PAM3O ;54 set PIO-A to output ; ;---- Output one X-/Y-position for oscilloscope: first, synthesize ramp ; HPMAN2: ld a,e ; 4 get address out (pioad),a ;11 put ramp data onto PIO-bus ld a,EnablX ; 7 enable DAC-X, synthesize ramp out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 ; ;---- now output measured and stored value ; ld a,(de) ; 7 get value at ramp position out (pioad),a ;11 put value onto PIO-bus ld a,EnablY ; 7 enable DAC-Y, recreate data out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc e ; 4 next read-memory position ; ;---- Check PEN OVERRIDE ; in a,(piobd) ;11 read PEN and ChkPen ; 7 mask out others than PEN jr z,HPMAN1 ;1/7 OVERRIDE=GND=1 ; ;==== Loops here as long as PEN is OVERRIDE and (ILoopV)=HPMAN ; HPMAN3: ld a,l ; 4 get adress out (pioad),a ;11 synthesize ramp ld a,EnablX ; 7 enable X-channel out (piobd),a ;11 ramp ld a,TrigOn ; 7 inhibit all devices, put LED on out (piobd),a ;11 ld a,(hl) ; 7 get value out (pioad),a ;11 send it ld a,EnablY ; 7 enable Y-channel out (piobd),a ;11 ld a,TrigOn ; 7 deselect all devices, LED on out (piobd),a ;11 inc l ; 4 next address jr nz,HPMAN3 ;1/7 repeat 1 sweep ; ;---- Check PEN toggled from OVERRIDE to normal up position ; in a,(piobd) ;11 get status and a,ChkPen ; 7 jr nz,HPMAN3 ;1/7 PEN=GND=1 ; ;---- If PEN switch in up position (PEN=5V=0), read inputs again ; jr HPMAN1 ;12 loop eternally ; ; ; HPINIT - SUBROUTINE Initialize ADA-950225. PIO-A is set to output, PIO-B ; to input (bits 5 thru 7) and output (bits 0 thru 4) ;--------------------------------------------------------------------------- ; HPInit: push af ;save only register used PBM3IO ;PIO-B set PAM3O ;PIO-A to output xor a ;0 out (pioad),a ;0 onto bus ld a,EnabXY ;enable both DAC, output 0Vdc out (piobd),a ld a,DeSlct ;deselect all devices out (piobd),a pop af ;restore AF ret ;done ; ;====================== END OF ETERNAL LOOP ================================ ; ; ; HPSTOP - Stops HPMan by resetting Instruction Queue Return Stack and ; initializing IQRS by DumyAp. ; This command must be used before any scans/samples can be used, ; because HPMan would overwrite ADABuY and ADABuX. ; ; Syntax: aHPStop. ;--------------------------------------------------------------------------- ; HPStop: dw ADARUN db 'HPSTOp' ld hl,DumyAp call IQStkA ;initialize IQRST jp Home ; ; ; SUBROUTINE empties Instruction Queue Return Stack and puts execution ; address in HL onto Stack and into ILoopV. ;--------------------------------------------------------------------------- ; IQStkA: ld a,(SysByt + 6) ;A=depth of IQRSP ld b,a IQStk1: call iqdrop ;drop item djnz IQStk1 ;until empty ld (SysWrd + 6),hl ;into ILoopV call iqpush ;onto return stack call iqpush ;twice ret ; ; ; ADARun - Runs HPREP by resetting Instruction Queue Return Stack and ; initializing IQRS by HPMan. ; This command can be used to run ADA-950225 autonomously again. ; Also, to run HPMan. ; ; Syntax: aADARun. ;--------------------------------------------------------------------------- ; ADARun: dw HPREP db 'ADARUn' ld hl,HPMan call IQStkA ;initialize IQRST jp Home ; ; ; HPREP - HP3581C Repetitive Sweep-Mode. ; Wave Analyzer must be in Sweep-Mode [REP], PEN and TRG connected. ; If PEN is up, triggers analyzer for one sweep. If more than one sweep ; is selected, sweeps number of selected times. ; It then continues at HPShow and shows memory until PEN is toggled. ; ; Syntax: aHPRep{,n}. where n=number of repeats [1;127] ; (default is 1) ;--------------------------------------------------------------------------- ; HPREP: dw HPSHOW db 'HPREp' ;HP on REP Sweep mode ld a,1 ;into param1 call FetPar ;(param1)=repetitions ld a,(SysWrd + 64) ;get low byte only add a,a ;needs double, Zaphod may know why or a ;check 0 jr nz,HPRep1 ;ok if > 0 ld a,2 ;minimum value HPRep1: inc a ;add one and 11111110b ;must be even ld c,a ;C is actual loop counter call HPInit ;initialize ADA ; ;==== Loops here (Turns) times ;---- Wait for PEN high, i.e. HP terminated sweep ; HPRep2: in a,(piobd) ;get status and ChkPen ;mask INT-X and INT-Y jr nz,HPRep2 ;contact open, end of sweep = 0 ; ;---- Wait 0.3 seconds to let filter settle ; HPRep3: ld hl,706 ;706 x 0.425 ms = 0.3 s HPRep4: ld b,l ;delay with 0.475 ms resolution HPRep5: djnz HPRep5 ;main delay loop dec hl ld a,l or h ;check HL=0 jr nz,HPRep4 ;end of delay - derived from LDelay Sub ld hl,ADABuy ;start of buffer ld d,h ;start of buffer ld e,l ; ;---- Now, Sweep can be started ; ld a,TrigOn ;set TRG high to start sweep out (piobd),a ld a,DeSlct ;set TRG low, sweep has started out (piobd),a ; ;---- Start ADC for both axis at the same time ; ld a,StrtXY ; 7 start both to synchronize axes out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 ; ;==== Loops here for one full HP sweep up to 3000 sec = 50 min ;---- Get interrupts, if active, read X and Y channels, else display ; HPRep6: ld b,0 ; 7 no read yet in a,(piobd) ;11 get interrupts and ChkXY ; 7 channels are synchronized jr nz,HPRep7 ;1/7 PAM3I ;54 if interrupts, set PIO-A to input ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get ramp value ld l,a ; 4 HL points to memory ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ; 7 get level value ld (hl),a ; 7 store level ld a,StrtXY ; 7 restart both ADCs out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 PAM3O ;54 set PIO-A to output inc b ; 4 we had a read ; ;---- Output one X-/Y-position for oscilloscope: first, synthesize ramp ; HPRep7: ld a,e ; 4 get address out (pioad),a ;11 put ramp data onto PIO-bus ld a,EnablX ; 7 enable DAC-X, synthesize ramp out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 ; ;---- now output measured and stored value ; ld a,(de) ; 7 get value at ramp position out (pioad),a ;11 put value onto PIO-bus ld a,EnablY ; 7 enable DAC-Y, recreate data out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc e ; 4 next read-memory position ; ;---- Check if we had at least one read ; dec b ; 4 0-1=255, 1-1=0 jr nz,HPRep6 ;1/7 if we had not had a read, retry ; ;---- Check end of sweep. If not ended, attempt to read ramp and value ; in a,(piobd) ;11 read PEN and ChkPen ; 7 mask out others than PEN jr nz,HPRep6 ;1/7 contact is opened at end = 0 ; ;---- Check end of all scans ; dec c ; 4 one full sweep done jp nz,HPRep3 ;13 restart analyzer take another sweep jr HPSho0 ;after all sweeps, continue with HPShow ; ; ; HPSHOW - HP3581C Shows memory content on channel-Y and output ramp on ; channel-X until PEN is toggled down. ; ; Syntax: aHPShow. ;--------------------------------------------------------------------------- ; HPShow: dw SAMCHP db 'HPSHOw' call HPInit ;initialize ADA-950225 HPSho0: ld hl,ADABuy ;start of buffer HPSho1: ld a,l ; 4 get adress out (pioad),a ;11 synthesize ramp ld a,EnablX ; 7 enable X-channel out (piobd),a ;11 ramp ld a,DeSlct ; 7 inhibit all devices out (piobd),a ;11 ld a,(hl) ; 7 get value out (pioad),a ;11 send it ld a,EnablY ; 7 enable Y-channel out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc l ; 4 next address jr nz,HPSho1 ;1/7 repeat 1 sweep ; ;---- ShowIt can be stopped by manually override PEN or by restarting ; HP3581C by removing [EXT.TRIG] cable ; in a,(piobd) ;11 get status and a,ChkPen ; 7 jr z,HPSho1 ;1/7 repeat until override (=HP sweeps) call HPInit ;reset ADA-950225 jp Home ;and call it a day ; ; ; SAMPLECHOP - Samples Y- and X-channel in chop mode for one sweep ; Routine uses Sample and Hold Chop (SAHCHP), but will not hold ; ; Syntax: aSampleChop. ;--------------------------------------------------------------------------- ; SamChp: dw SAMALT db 'SAMPLECHOp' xor a ;reset Hold flag ld (SysBuf + 8),a jp SamCh0 ; ; ; SAMPLEALT - Scans Y- and X-channel in alternate mode for one sweep ; Routine uses Sample and Hold Alternate (SAHALT), but will not hold ; ; Syntax: aSampleAlt. ;--------------------------------------------------------------------------- ; SamAlt: dw SAMPLY db 'SAMPLEALt' xor a ;reset Hold flag ld (SysBuf + 8),a jp SamAl0 ; ; ; SAMPLEY - Takes one Sample from Channel Y ; ; Syntax: aSampleY. ;--------------------------------------------------------------------------- ; SamplY: dw SAMPLX db 'SAMPLEy' call HPInit ;initialize ADA-950225 PAM3I ld hl,ADABuY ;buffer start SampY1: ld a,StartY ; 7 start Y only, LED on out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SampY2: in a,(piobd) ;11 get interrupts and 01000000b ; 7 INT-Y jr nz,SampY2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 4 next address and flag if 256 jr nz,SampY1 ;1/7 if not yet 256, repeat jp Home ;256 samples taken ; ; ; SAMPLEX - Takes one Sample from Channel X ; ; Syntax: aSampleX. ;--------------------------------------------------------------------------- ; SamplX: dw SWPCHP db 'SAMPLEx' call HPInit ;initialize ADA-950225 PAM3I ld hl,ADABuX ;buffer start SampX1: ld a,StartX ; 7 start X only, LED on out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SampX2: in a,(piobd) ;11 get interrupts and 10000000b ; 7 INT-X jr nz,SampX2 ;1/7 ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 4 next address and flag if 256 jr nz,SampX1 ;1/7 if not yet 256, repeat jp Home ;256 samples taken ; ; ; SWEEPCHOP - Outputs Y and X memory content onto Y- and X-channel in ; chop mode. One value each. ; ; Syntax: aSweepChop. ;--------------------------------------------------------------------------- ; SwpChp: dw SWEEPB db 'SWEEPCHOp' SwpCh0: call HPInit ;initialize ADA-950225 ld hl,ADABuX ;X-buffer at 33024 SwpCh1: dec h ; 4 previous page for Y-data ld a,(hl) ; 7 get Y-data from memory (HL) out (pioad),a ;11 put Y onto bus ld a,EnablY ; 7 enable DAC-Y out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc h ; 4 next page for X-data ld a,(hl) ; 7 get X-data from memory (HL) out (pioad),a ;11 put X onto bus ld a,EnablX ; 7 enable DAC-X out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc l ; 4 next address in a,(piobd) ;11 now read PEN ---- CHECK PEN and 00100000b ; 7 mask out others than PEN jr z,SwpCh1 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; SWEEPBURST - Alternate name for SweepAlt ; ; Syntax: aSweepBurst. ;--------------------------------------------------------------------------- ; SweepB: dw SWPALT db 'SWEEPBURSt' jr SwpAl0 ; ; ; SWEEPALT - Outputs memory on Y- and X-channel in alternate or burst mode ; until PEN ; ; Syntax: aSweepAlt. ;--------------------------------------------------------------------------- ; SwpAlt: dw SWEEPY db 'SWEEPALt' SwpAl0: call HPInit ;initialize ADA-950225 ld hl,ADABuX ;buffer X ;---- Start, LED on. Sweeps in 74 t_cycles = 0.0185ms per channel ; SwpAl1: dec h ; 4 previous page for Y-data ---- YYYY ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 ld a,EnablY ; 7 enable DAC-Y out (piobd),a ;11 SwpAl2: ld a,(hl) ; 7 get Y-data from memory (HL) out (pioad),a ;11 put Y onto bus inc l ; 4 next address jr nz,SwpAl2 ;1/7 do one full sweep inc h ; 4 next page for X-data ---- XXXX ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 ld a,EnablX ; 7 enable DAC-X out (piobd),a ;11 SwpAl3: ld a,(hl) ; 7 get X-data from memory (HL) out (pioad),a ;11 put X onto bus inc l ; 4 next address jr nz,SwpAl3 ;1/7 do one full sweep in a,(piobd) ;11 now read PEN ---- PEN ABORT and 00100000b ; 7 mask out others than PEN jr z,SwpAl1 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 if PEN jp Home ; ; ; SWEEPY - Sweeps memory on Y-channel until PEN ; ; Syntax: aSweepY. ;--------------------------------------------------------------------------- ; SweepY: dw SWEEPX db 'SWEEPy' SwepY0: call HPInit ;initialize ADA-950225 ld a,EnablY ; 7 enable DAC-Y out (piobd),a ;11 ld hl,ADABuY ; initialize buffer SwepY1: ld a,(hl) ; 7 get Y-data from memory (HL) out (pioad),a ;11 put Y onto bus inc l ; 4 next address in a,(piobd) ;11 now read PEN and 00100000b ; 7 mask out others than PEN jr z,SwepY1 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; SWEEPX - Sweeps memory on X-channel until PEN ; ; Syntax: aSweepX. ;--------------------------------------------------------------------------- ; SweepX: dw SAHCHP db 'SWEEPx' SwepX0: call HPInit ;initialize ADA-950225 ld a,EnablX ; 7 enable DAC-Y out (piobd),a ;11 ld hl,ADABuX ; initialize buffer SwepX1: ld a,(hl) ; 7 get Y-data from memory (HL) out (pioad),a ;11 put Y onto bus inc l ; 4 next address in a,(piobd) ;11 now read PEN and 00100000b ; 7 mask out others than PEN jr z,SwepX1 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; SAHCHOP - Sample and Hold Chop samples Y- and X-inputs in chop mode, ; then displays memory content in chop mode until PEN. ; LED is /3 bright during scan. ; ; Syntax: aSaHChop. ;--------------------------------------------------------------------------- ; SAHChp: dw SAHALT db 'SAHCHOp' ld a,1 ;flag Hold after scan ld (SysByt + 8),a SamCh0: call HPInit PAM3I ;PIO-A to input ld hl,ADABuX ;start of X-buffer SamCh1: dec h ; 4 previous page ld a,StrtXY ; 7 start X and Y, LED on out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SamCh2: in a,(piobd) ;11 get interrupts and 11000000b ; 7 INT-X and INT-Y jr nz,SamCh2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,TrigOn ; 7 deselect devices out (piobd),a ;11 inc h ; 4 next page ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 4 next address and flag if 256 jr nz,SamCh1 ;1/7 if not yet 256, repeat HldTst: ld a,(SysByt + 8) ;get Hold flag dec a ;A=1=0: Hold true jp z,SwpCh0 ;End of scans: goto SweepChop call HPInit ;reset ADA-950225 jp Home ; ; ; SAHALT - Sample and Hold Y- and X-channel alternately ; Takes 256 reads on each channel and maximal speed. LED is on ; while in sweep mode: bright for Y, half bright for X ; ; Syntax: aSaHAlt. ;--------------------------------------------------------------------------- ; SAHALT: dw SAHY db 'SAHALt' ld a,1 ;flag Hold after scan ld (SysByt + 8),a SamAl0: call HPInit PAM3I ;PIO-A to input ld hl,ADABuY ;start of Y-buffer SAHAY1: ld a,StartY ; 7 start Y ---- YYYY out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SAHAY2: in a,(piobd) ;11 get interrupts and 01000000b ; 7 INT-Y jr nz,SAHAY2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,TrigOn ; 7 deselect devices, LED on out (piobd),a ;11 inc l ; 4 next address jr nz,SAHAY1 ;1/7 256 repeats inc h ; 4 next page, X-memory ---- XXXX SAHAX1: ld a,StartX ; 7 start X, LED on out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SAHAX2: in a,(piobd) ;11 get interrupts and 10000000b ; 7 INT-X jr nz,SAHAX2 ;1/7 ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices, LED off out (piobd),a ;11 inc l ; 4 next address jr nz,SAHAX1 ;1/7 256 repeats jp HldTst ;End of scans: Test hold flag ; ; ; SAHY - Sample and Hold Y-channel. After one max-speed scan, displays ; memory until PEN. During Scan, LED lights half bright. ; ; Syntax: aSaHY. ;--------------------------------------------------------------------------- ; SAHY: dw SAHX db 'SAHy' call HPInit ;initialize ADA-950225 PAM3I ld hl,ADABuY ;Y-buffer SAHY1: ld a,StartY ; 7 start Y only, LED on out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SAHY2: in a,(piobd) ;11 get interrupts and 01000000b ; 7 INT-Y jr nz,SAHY2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 4 next address and flag if 256 jr nz,SAHY1 ;1/7 if not yet 256, repeat jp SwepY0 ;continue with sweep ; ; ; SAHX - Sample and Hold X-channel. After one max-speed scan, displays ; memory until PEN. During Scan, LED lights half bright. ; ; Syntax: aSaHX. ;--------------------------------------------------------------------------- ; SAHX: dw SCNCHP db 'SAHx' call HPInit ;initialize ADA-950225 PAM3I ld hl,ADABuX ;X-buffer SAHX1: ld a,StartX ; 7 start X only, LED on out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 SAHX2: in a,(piobd) ;11 get interrupts and 10000000b ; 7 INT-X jr nz,SAHX2 ;1/7 ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 4 next address and flag if 256 jr nz,SAHX1 ;1/7 if not yet 256, repeat jp SwepX0 ;continue with sweep ; ; ; SCANCHOP - Reads Y- and X-channel in chop mode. If input is not ready, ; displays Y- and X-channel in chop mode ; ; Syntax: aScanChop. ;--------------------------------------------------------------------------- ; ScnChp: dw SCANY db 'SCANCHOp' call HPInit ;initialize ADA-950225 ld hl,ADABuX ;start of buffer ld d,h ld e,l ScnCh1: dec h ; 4 previous page ---- LOOP ---- ld a,StrtXY ; 7 start X and Y, LED on out (piobd),a ;11 ld a,DeSlct ; 7 deselect all out (piobd),a ;11 ScnCh2: in a,(piobd) ;11 get interrupts and 11000000b ; 7 INT-X and INT-Y jr nz,ScnCh3 ;1/7 PAM3I ;54 PIO-A to Input ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc h ; 4 next page ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 4 next address PAM3O ;54 PIO-A to output jr ScnCh1 ;12 if read, restart ADCs ScnCh3: dec d ; 4 previous page for Y-data ---- DISPLAY ld a,(de) ; 7 get Y-data from memory (DE) out (pioad),a ;11 put Y onto bus ld a,EnablY ; 7 enable DAC-Y out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc d ; 4 next page for X-data ld a,(de) ; 7 get X-data from memory (DE) out (pioad),a ;11 put X onto bus ld a,EnablX ; 7 enable DAC-X out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc e ; 4 next address in a,(piobd) ;11 now read PEN and 00100000b ; 7 mask out others than PEN jr z,ScnCh2 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; SCANY - Scans Y-channel and displays it ; ; Syntax: aScanY. ;--------------------------------------------------------------------------- ; ScanY: dw SCANX db 'SCANy' call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer ld d,h ld e,l ;DE=ADABufY ScanY1: ld a,StartY ; 7 start Y out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 ScanY2: in a,(piobd) ;11 get interrupt and 01000000b ; 7 INT-Y jr nz,ScanY3 ;1/7 PAM3I ;54 PIO-A to input ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 6 next address PAM3O ;54 PIO-A to output jr ScanY1 ;12 restart ADC-Y ScanY3: ld a,(de) ; 4 get data ---- DISPLAY ---- out (pioad),a ;11 put X onto bus ld a,EnablY ; 7 enable DAC-Y out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc e ; 4 next address in a,(piobd) ;11 now read PEN ---- PEN ABORT and 00100000b ; 7 mask out others than PEN jr z,ScanY2 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; SCANX - Scans X-channel and displays it ; ; Syntax: aScanX. ;--------------------------------------------------------------------------- ; ScanX: dw RECMON db 'SCANx' call HPInit ;initialize ADA-950225 ld hl,ADABuX ;start of buffer ld d,h ld e,l ;DE=ADABufX ScanX1: ld a,StartX ; 7 start X out (piobd),a ;11 ld a,DeSlct ; 7 deselect all out (piobd),a ;11 ScanX2: in a,(piobd) ;11 get interrupt and 10000000b ; 7 INT-X jr nz,ScanX3 ;1/7 PAM3I ;54 PIO-A to input ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc l ; 6 next address PAM3O ;54 PIO-A to output jr ScanX1 ;12 restart ADC-Y ScanX3: ld a,(de) ; 4 get data ---- DISPLAY ---- out (pioad),a ;11 put X onto bus ld a,EnablX ; 7 enable DAC-X out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc e ; 4 next address in a,(piobd) ;11 now read PEN ---- PEN ABORT and 00100000b ; 7 mask out others than PEN jr z,ScanX2 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; Syntax: aRecordMono. ;--------------------------------------------------------------------------- ; RecMon: dw RECORD db 'RECORDMONo' jr Recor0 ; ; ; RECORD - Records input of channel-Y for 31680 bytes from 31768 hence ; This gives about 8 seconds worth of data ; ; Syntax: aRecord. ;--------------------------------------------------------------------------- ; Record: dw RECDST db 'RECORd' Recor0: call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer ld bc,ADAMo ;length of buffer PAM3I ;54 PIO-A to input Recor1: ld a,StartY ; 7 start Y out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 Recor2: in a,(piobd) ;11 get interrupt and 01000000b ; 7 INT-Y jr nz,Recor2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc hl ; 6 next address dec bc ; 6 counter-1 ld a,b ; 4 or c ; 4 Test end jr nz,Recor1 ;1/7 not yet 31680, repeat call HPInit ;reset ADA-950225 jp Home ; ; ; RECORDSTEREO - Records input of channel-Y and channel-X in chop mode, each ; for 15840 bytes from 31768/48608 hence ; This gives about 4 seconds worth of data per channel ; ; Syntax: aRecordStereo. ;--------------------------------------------------------------------------- ; RecdSt: dw PLAYMO db 'RECORDSTEREo' call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer Y ld de,ADARec ;start of buffer X ld bc,ADASt ;length of buffer PAM3I ;54 PIO-A to input RecSt1 ld a,StrtXY ; 7 start X and Y out (piobd),a ;11 ld a,DeSlct ; 7 deselect all out (piobd),a ;11 RecSt2: in a,(piobd) ;11 get interrupts and 11000000b ; 7 INT-X and INT-Y jr nz,RecSt2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc hl ; 4 next address for Y ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (de),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc de ; 6 next address for X dec bc ; 6 one scan done ---- CHECK END OF SCAN ld a,b ; 4 or c ; 4 check end jr nz,RecSt1 ;1/7 if not yet 15840, repeat call HPInit ;reset ADA-950225 jp Home ; ; ; PLAYMONO - Outputs 31680 bytes of data on Y- and X-channel parallel ; until PEN. Alternate name for PLAYBACK. ; ; Syntax: aPlayMono. ;--------------------------------------------------------------------------- ; PlayMo: dw PLAYBK db 'PLAYMONo' jr Playb0 ; ; ; PLAYBACK - Outputs 31680 bytes of data on Y- and X-channel parallel ; until PEN. ; ; Syntax: aPlayBack. ;--------------------------------------------------------------------------- ; PlayBk: dw PLAYST db 'PLAYBACk' Playb0: call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer ld bc,ADAMo ;length of buffer ld a,EnabXY ; 7 enable DAC-Y and X, stay so out (piobd),a ;11 Playb1: ld a,(hl) ; 7 get X-data from memory (HL) out (pioad),a ;11 put X onto bus inc hl ; 6 next address dec bc ; 6 one byte done ld a,b ; 4 ---- END OF SWEEP or c ; 4 check end jr nz,Playb1 ;1/7 continue if not completed ld hl,ADABuY ;reset buffer ---- ABORT REQUEST ld bc,ADAMo ;reset buffer size in a,(piobd) ;11 now read PEN and 00100000b ; 7 mask out others than PEN jr z,Playb1 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; PLAYSTEREO - Plays back on channel -Y memory from 32768 to 48607 and ; channel-Y from 48608 for 31680 bytes in chop mode until PEN ; ; Syntax: aPlayStereo. ;--------------------------------------------------------------------------- ; PlaySt: dw LOGMO db 'PLAYSTEREo' call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of Y-buffer ld de,ADARec ;start of X-buffer ld bc,ADASt ;length of buffer PlayS1: ld a,(hl) ; 7 get Y-data from memory (HL) out (pioad),a ;11 put Y onto bus ld a,EnablY ; 7 enable DAC-Y out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc hl ; 6 next address for Y ld a,(de) ; 7 get X-data from memory (DE) out (pioad),a ;11 put X onto bus ld a,EnablX ; 7 enable DAC-X out (piobd),a ;11 ld a,DeSlct ; 7 deselect all devices out (piobd),a ;11 inc de ; 6 next address for X dec bc ; 6 one double byte output ld a,b ; 4 ---- CHECK END OF SWEEP or c ; 4 check end jr nz,PlayS1 ;1/7 continue if not completed ld hl,ADABuY ;reset Y-buffer ---- CHECK ABORT REQUEST ld de,ADARec ;reset X-buffer ld bc,ADAMo ;reset buffer size in a,(piobd) ;11 now read PEN and 00100000b ; 7 mask out others than PEN jr z,PlayS1 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; LOGSINGLE - Logs input of channel-Y for 31680 bytes from 31768 hence. The ; delay between 2 samples can be set with either 6.5Ms or 426ms ; resolution. ; t=[0;65535] ; If m=S: delay between logs = t x 6.5 Ms ; Log time: 206 ms to 3h 44m 52s ; If m=L: delay between logs = t x 425.9 ms ; Log time: 3h 55m to 10d 5h 5m ; (CAcntr) holds remaining loops if aborted prematurely using PEN ; ; Syntax: aLogSingle,m,t. ;--------------------------------------------------------------------------- ; LogMo: dw LOGST db 'LOGSINGLe' call DlyMod ;get delay mode and number of loops call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer ld bc,ADAMo ;length of buffer PAM3I ;54 PIO-A to input LogMo1: ld a,StartY ; 7 start Y out (piobd),a ;11 ld a,TrigOn ; 7 deselect all out (piobd),a ;11 LogMo2: in a,(piobd) ;11 get interrupt and 01000000b ; 7 INT-Y jr nz,LogMo2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc hl ; 6 next address call LogDly ;produce delay in a,(piobd) ;11 now read PEN ---- CHECK ABORT and 00100000b ; 7 mask out others than PEN jr nz,LogMo3 ;1/7 exit if -PEN dec bc ; 6 counter-1 ld a,b ; 4 or c ; 4 Test end jr nz,LogMo1 ;1/7 not yet 31680, repeat LogMo3: ld hl,Sysbuf + 62 ;point to delay time ld (hl),c inc hl ld (hl),b ;store remaining loops call HPInit ;reset ADA-950225 jp Home ; ; ; Delay Mode SUBROUTINE gets delay mode (CApntr) and cycles in (CAcntr) ; HL and AF are destroyed on exit. ;--------------------------------------------------------------------------- ; DlyMod: ld hl,(SysWrd + 70) ;get pointer inc hl ld a,(hl) ;get char m (S or L) res 5,a ;convert to upper case ld (SysWrd + 60),a ;(CApntr)="S" or "L" inc hl ;point to delimiter ld a,1 ;parameter 1 call FetPar ;(param1)=t ld hl,(SysWrd + 64) ;get (param1) ld (SysWrd + 62),hl ;(CAcntr)=loop counter ret ; ; ; Log Delay SUBROUTINE finds selected delay and produces it by calling the ; appropriate delay subroutine. ; The AF register is destroyed. ;--------------------------------------------------------------------------- ; LogDly: push hl ;save HL ld hl,(SysWrd + 62) ;get delay t ld a,(SysWrd + 60) ;get mode S(hort or L(ong cp 'S' call z,SDelay ;short delay cp 'L' call z,LDelay ;Long delay pop hl ;restore HL ret ; ; ; LOGDOUBLE - Records input of channel-Y and channel-X in chop mode, each ; for 15840 bytes from 31768/48608 hence. The delay between ; 2 samples can be set with either 6.5Ms or 426ms resolution. ; t=[0;65535] ; If m=S: delay between logs = t x 6.5 Ms ; Log time: 206 ms to 1h 52m ; If m=L: delay between logs = t x 425.9 ms ; Log time: 1h 52m to 5d 2h 32m ; (CAcntr) holds remaining loops if aborted prematurely using PEN ; ; Syntax: aLogDouble,m,t. ;--------------------------------------------------------------------------- ; LogSt: dw PENBIT db 'LOGDOUBLe' call DlyMod ;get delay mode and number of loops call HPInit ;initialize ADA-950225 ld hl,ADABuY ;start of buffer Y ld de,ADARec ;start of buffer X ld bc,ADASt ;length of buffer PAM3I ;54 PIO-A to input LogSt1 ld a,StrtXY ; 7 start X and Y out (piobd),a ;11 ld a,DeSlct ; 7 deselect all out (piobd),a ;11 LogSt2: in a,(piobd) ;11 get interrupts and 11000000b ; 7 INT-X and INT-Y jr nz,LogSt2 ;1/7 ld a,ReadY ; 7 enable ADC-Y out (piobd),a ;11 in a,(pioad) ;11 get data ld (hl),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc hl ; 4 next address for Y ld a,ReadX ; 7 enable ADC-X out (piobd),a ;11 in a,(pioad) ;11 get data ld (de),a ; 4 store data byte ld a,DeSlct ; 7 deselect devices out (piobd),a ;11 inc de ; 6 next address for X call LogDly ;produce delay in a,(piobd) ;11 now read PEN ---- CHECK ABORT and 00100000b ; 7 mask out others than PEN jp nz,LogSt3 ;1/7 exit if -PEN dec bc ; 6 one scan done ---- CHECK END OF SCAN ld a,b ; 4 or c ; 4 check end jr nz,LogSt1 ;1/7 if not yet 15840, repeat LogSt3: ld hl,Sysbuf + 62 ;point to delay time ld (hl),c inc hl ld (hl),b ;store remaining loops call HPInit ;reset ADA-950225 jp Home ; ; ; PENBIT reads PEN-bit and stores each 8 into a byte. ; 4096 bits can be read and stored in 33280 in 512 bytes ; ; Syntax: aPenBit. ;--------------------------------------------------------------------------- ; PenBit: dw TRGBIT db 'PENBIt' call HPInit ;initialize ADA-950225 ld hl,ADAPen ;buffer start ld e,2 ;512 byte counter PenBi1: ld b,8 ; 7 8 bits PenBi2: in a,(piobd) ;11 read PEN rla ; 4 bit 5 to bit 6 rla ; 4 bit 6 to bit 7 rla ; 4 bit 7 into carry rl c ; 8 CY into bit 0 of C, all bits left djnz PenBi2 ;13/8 get 8 bits ld (hl),c ; 7 store 8 bits inc l ; 4 next address jr nz,PenBi1 ;1/7 repeat 256 times inc h ; 4 next page dec e ; 4 256 bytes done jr nz,PenBi1 ;1/7 do another 2,048kbit call HPInit ;reset ADA-950225 jp Home ; ; ; TRGBIT outputs Y-channel memory on TRG output. 1 byte as 8 bits ; After 4096 bits = 512 bytes eternal loop can be stopped with PEN. ; ; Syntax: aTrgBit. ;--------------------------------------------------------------------------- ; TrgBit: dw COPYXY db 'TRGBIt' call HPInit ;initialize ADA-950225 TrgBi0: ld hl,ADAPen ;buffer start ld e,2 ;256 byte counter TrgBi1: ld b,8 ;8 bits ld c,(hl) ;get 8 bits TrgBi2: rl c ;Bit 7 to CY, other bits left jr nc,TrgBi3 ld a,TrigOn ;bit is set jr TrgBi4 TrgBi3: ld a,DeSlct ;bit is reset TrgBi4: out (piobd),a djnz TrgBi2 ;do 8 bits inc l ;next address jr nz,TrgBi1 ;repeat, next 8 bits inc h ;next page dec e ;2048 bits done jr nz,TrgBi1 ;output another 2048 bits in a,(piobd) ;11 now read PEN and 00100000b ; 7 mask out others than PEN jr z,TrgBi0 ;1/7 reloop if not +PEN call HPInit ;reset ADA-950225 jp Home ; ; ; CopyXY - Copies ADABuY to ADABuX. ; ; Syntax: aCopyXY. ;-------------------------------------------------------------------------- ; CopyXY: dw COPYYX db 'COPYXy' ld hl,ADABuY ;source ld de,ADABuX ;destination ld bc,256 ;bytes ldir ;copy jp Home ; ; ; CopyYX - Copies ADABuX to ADABuY. ; ; Syntax: aCopyYX. ;-------------------------------------------------------------------------- ; CopyYX: dw SWAPXY db 'COPYYx' ld hl,ADABuX ;source ld de,ADABuY ;destination ld bc,256 ;bytes ldir ;copy jp Home ; ; ; SwapXY - Swaps ADABuY with ADABuX. ; ; Syntax aSwapXY. ;--------------------------------------------------------------------------- ; SwapXY: dw SINE db 'SWAPXy' ld hl,ADABuX ;X-buffer ld de,ADABuX + 256 ;auxilliary buffer ld bc,256 ;bytes ldir ;copy X-data to auxilliary buffer ld hl,ADABuY ;source ld de,ADABuX ;dest inc b ;BC=256 ldir ;Y data to X ld hl,ADABuX + 256 ;source=aux-buffer ld de,ADABuY ;dest inc b ;BC=256 ldir ;X-data to Y jp Home ; ; ; SINE - Copies sinewave data of 1 Hz full swing to Y-channel memory ; ; Syntax: aSine. ;--------------------------------------------------------------------------- ; Sine: dw RAMP db 'SINe' ld hl,SinDat ;sine wave data ld de,ADABuY ;Y-buffer ld bc,256 ;bytes ldir ;copy jp Home ; ; ; SINEWAVE Data. f=1Hz ;--------------------------------------------------------------------------- ; SINDAT: db 127,123,120,117,114,111,108,105,101, 98, 95, 92, 89, 86, 83 db 80, 77, 74, 72, 69, 66, 63, 61, 58, 55, 53, 50, 48, 45, 43 db 40, 38, 36, 34, 31, 29, 27, 25, 24, 22, 20, 18, 17, 15, 13 db 12, 11, 9, 8, 7, 6, 5, 4, 3, 2, 2, 1, 0, 0, 0 db 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 2 db 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15, 17, 19, 20, 22 db 24, 26, 28, 30, 32, 34, 37, 39, 41, 44, 46, 48, 51, 54, 56 db 59, 61, 64, 67, 70, 73, 75, 78, 81, 84, 87, 90, 93, 96, 99 db 103,106,109,112,115,118,121,124,128,131,134,137,140,143,146 db 149,153,156,159,162,165,168,171,174,177,179,182,185,188,191 db 193,196,199,201,204,206,209,211,213,216,218,220,222,224,226 db 228,230,232,234,235,237,239,240,241,243,244,245,246,248,249 db 249,250,251,252,252,253,253,254,254,254,254,254,254,254,254 db 254,254,253,253,252,252,251,250,249,248,247,246,245,244,243 db 241,240,239,237,235,234,232,230,228,226,224,222,220,218,216 db 213,211,209,206,204,201,199,196,193,191,188,185,182,179,177 db 174,171,168,165,162,159,156,153,149,146,143,140,137,134,131 db 128 ; ; ; RAMP - Copies ramp data of 1 Hz full swing to Y-channel memory ; ; Syntax: aRamp. ;--------------------------------------------------------------------------- ; Ramp: dw TRIANG db 'RAMp' ld hl,ADABuY ;Y-buffer xor a ;A=data Ramp1: ld (hl),a ;insert byte inc hl ;next address inc a ;next data jr nz,Ramp1 ;until A=256=0 jp Home ; ; ; TRIANGLE - Copies triangle data of 1 Hz full swing to Y-channel memory ; ; Syntax: aTriangle. ;--------------------------------------------------------------------------- ; Triang: dw SQUARE db 'TRIANGLe' ld hl,ADABuY ;Y-buffer xor a ;A=data Trian1: ld (hl),a ;insert byte inc hl ;next address inc a inc a ;next data jr nz,Trian1 ;do up leg dec a dec a Trian2: ld (hl),a inc hl dec a dec a jr nz,Trian2 ;do downleg jp Home ; ; ; SQUARE - Copies square data of 1 Hz full swing to Y-channel memory ; ; Syntax: aSquare. ;--------------------------------------------------------------------------- ; Square: dw PULSE db 'SQUARe' ld b,128 ;high leg counter ld c,128 ;low leg counter jr Pulse0 ;same procedure ; ; ; PULSE - Copies pulse data of 1 Hz full swing to Y-channel memory ; Duty cycle is 10%. ; ; Syntax: aPulse. ;--------------------------------------------------------------------------- ; Pulse: dw INVDAY db 'PULSe' ld b,26 ;high leg counter ld c,230 ;low leg counter Pulse0: ld hl,ADABuY ;Y-buffer ld a,255 ;A=data Pulse1: ld (hl),a ;insert byte inc hl ;next address djnz Pulse1 ;do high leg ld b,c ;get low leg counter inc a ;A=0 Pulse2: ld (hl),a inc hl djnz Pulse2 ;do high leg jp Home ; ; ; INVERTY - Inverts data in Y-buffer ; ; Syntax: aInvertY. ;--------------------------------------------------------------------------- ; InvDaY: dw INVDAX db 'INVERTy' ld hl,ADABuY ;Y-buffer jr InvDa0 ;continue at InvertY ; ; ; INVERTX - Inverts data in X-buffer ; ; Syntax: aInvertX. ;--------------------------------------------------------------------------- ; InvDaX: dw DUMMY db 'INVERTx' ld hl,ADABuX ;X-buffer InvDa0: ld b,0 ;256 bytes InvDa1: ld a,(hl) ;get current data xor 255 ;invert ld (hl),a ;store inverted data inc hl ;next address djnz InvDa1 ;repeat jp Home ; ; ; DUMMY - 1st undefined word in list. ;--------------------------------------------------------------------------- ; Dummy: dw 65535 ;First undefined db 255 ;name=255 ; ; ;========================== 951030 --- HoroSoft ============================ ; end
Notes on the above Listing
The assemblable source code, the hex-intel files and the rom-code can be found under Projects > Resources.
This is the originally typed Z80 assembler listing, not the output of the Cromemco Macro Assembler v.03.04 which was used to create the ROMable code.
The numbers in the remarks column right of the semicolon (;) are the number of t-cycles the processor needs to execute the instruction. If there are 2 numbers, e.g. 1/7, the first are the needed t-cycles when looping back to the label, the second to continue when the loop is done. A Z80 t-cycle for a 4 MHz clock is 250 ns. The execution speed of a command can be calculatd. There are no interrupts if no new commands are downloaded to UZE computer.
The commands are named and connected by a linked list. The 'DW' (define word) at the beginning of a named command points to the start of the next command. The 'DW' is followed by a 'DB' (define byte) sequence that contains the name of the command in upper case. To be able to omit the length of the command name or to circumvent the necessity for fixed-length command names, the last character of the name is in lower case to signal the end of the command name.
If you study the code and think you are missing something, you are perfectly right. The macros referenced and some subroutines called belong to the UZE operating system, so do the command parsing routines. Look at the UZE Source for all that is missing here.
Z80 mnemonics are different but (in my opinion) more obvious than the iAPX 80x86 Intel ones, there are some similarities, however. After much of assembler programming — the only programming that really is fun and challenging — I came to prefer the Zilog mnemonics and appreciate the powerful instruction set not found on Intel processors.
